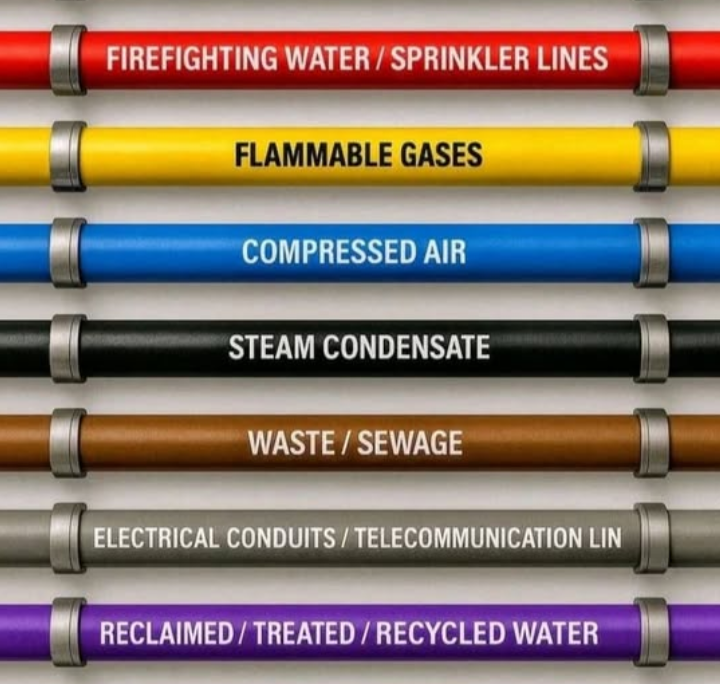

In modern industrial facilities, clear pipe identification is essential for safety, maintenance efficiency, and regulatory compliance. One of the most widely used systems for pipe color identification in Europe is the RAL color standard, which provides consistent colors for different media flowing through pipelines.
For compressed air systems, proper color coding helps maintenance teams quickly identify pipelines, avoid connection mistakes, and improve workplace safety.
Why pipe color coding matters?
Compressed air networks often run alongside other utilities such as water, gas, nitrogen, and hydraulic oil. Without a standardized color system, identifying the correct pipe during installation or maintenance can become difficult and potentially dangerous.
Using RAL safety colors allows facilities to:
- Improve safety and hazard recognition
- Simplify maintenance and troubleshooting
- Meet industrial safety standards
- Ensure consistency across large installations
-RAL 5015 – Sky Blue
-RAL 5012 – Light Blue
These colors are widely used for:
- Main compressed air distribution lines
- Pneumatic supply lines
- Compressor discharge piping
- Air headers and ring mains
Blue provides strong visibility and is widely recognized in industrial environments as the identification color for compressed air.
Instrument Air:
In many facilities, instrument air is part of the same compressed air system but used for sensitive control equipment.
Instrument air lines are often marked using the same blue base color, with additional labeling such as:
- “Instrument Air”
- Flow direction arrows
- Pressure class markings
- Inert Gas Lines
Some compressed air systems include connections to nitrogen or other inert gases.
These pipelines are often identified with RAL 6018 – Yellow Green, helping differentiate them from standard compressed air networks.
Fire Protection Systems
Compressor rooms and utility areas frequently contain fire protection systems. These pipes are typically marked using RAL 3000 – Flame Red, which is widely recognized for fire safety equipment.
Gas Supply Lines
If compressors are powered by natural gas engines, the fuel supply pipelines are often marked with RAL 1023 – Traffic Yellow, a common color for flammable gases.
Additional identification methods
In addition to pipe color, most industrial systems also include:
- Direction arrows indicating flow
- Text labels identifying the medium
- Pressure or system identification markings
- Safety warnings when required
These markings help technicians immediately understand the function of each pipeline within a complex utility network.
Best practices for compressed air pipe identification
To ensure effective pipe identification in industrial compressed air systems, companies should:
- Use consistent RAL colors throughout the facility
- Apply clear labels at regular intervals along the pipeline
- Mark pipes near valves, junctions, and wall penetrations
- Include flow direction arrows for maintenance clarity
- Proper identification not only improves safety but also reduces downtime during maintenance and system upgrades.
