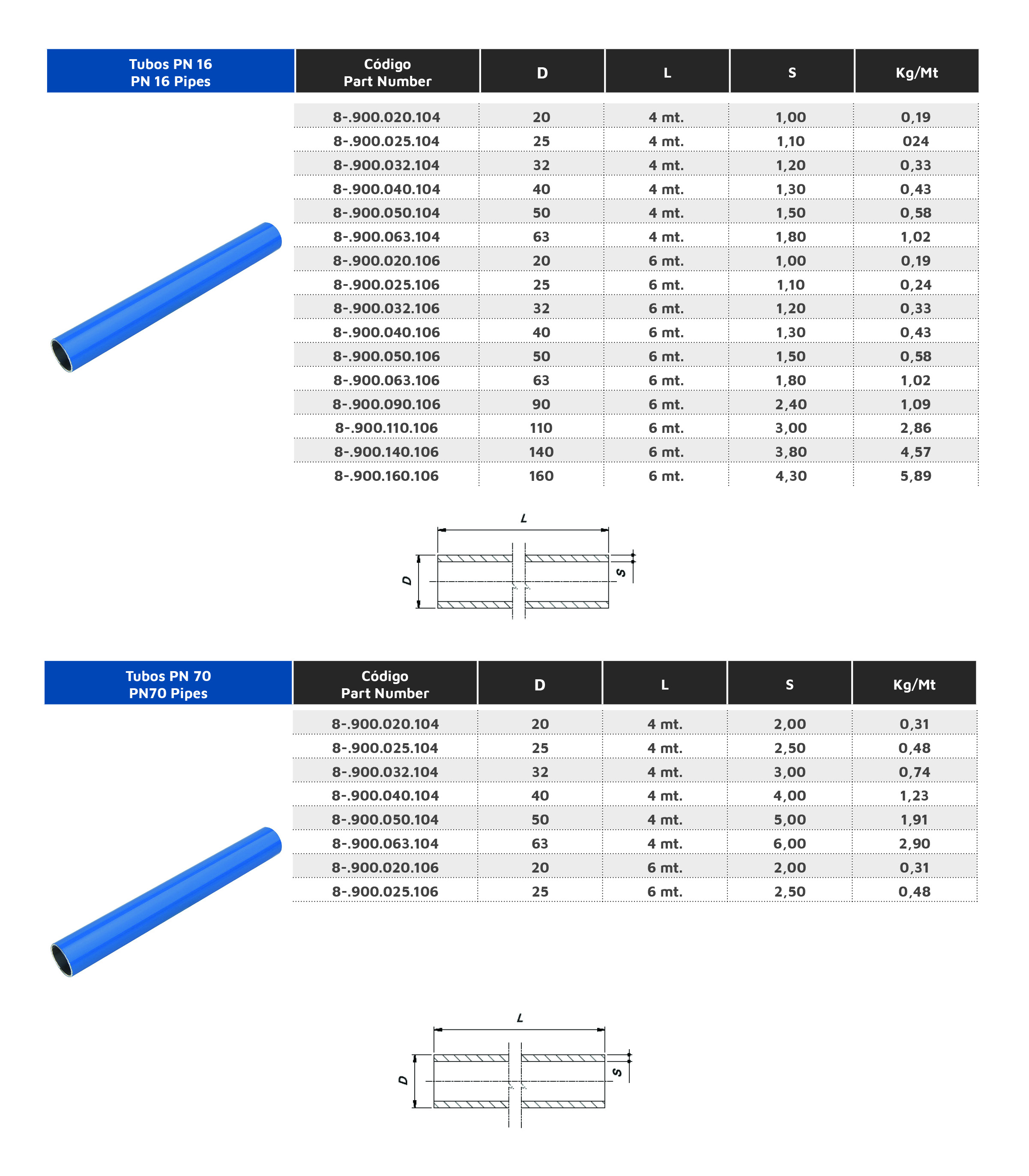

Pipe Dimension Chart

Plants Drawing and Sizing Software

Dimensions Tables in Aluminum Tube

Tubo PN16

Code D L mt. S mm Kg/mt. Drawing
8-.900.020.004 20 4 1 0.16

8-.900.025.004 25 4 1.1 0.22
8-.900.032.004 32 4 1.2 0.31
8-.900.040.004 40 4 1.3 0.43
8-.900.050.004 50 4 1.4 0.58
8-.900.063.004 63 4 1.8 0.94
8-.900.020.004 20 6 1 0.16
8-.900.025.004 25 6 1.1 0.22
8-.900.032.004 32 6 1.2 0.31
8-.900.040.004 40 6 1.3 0.43 Colors RAL
8-.900.050.006 50 6 1.4 0.58 EQOair RAL5012
8-.900.063.006 63 6 1.8 0.94 EQOnito RAL6018
8-.900.090.006 90 6 2.4 1.8 EQOh2o RAL6018
8-.900.110.006 110 6 3 2.7 EQOfire RAL3000
8-.900.140.006 140 6 3.8 4.4 EQOvac RAL7046
8-.900.160.006 160 6 4.3 5.7

Tubo PN70

Code D L mt. S mm Kg/mt. Drawing
8-.900.020.004 20 4 2 0.31
8-.900.025.004 25 4 2.5 0.48
8-.900.032.004 32 4 3 0.74
8-.900.040.004 40 4 4 1.23
8-.900.050.004 50 4 5 1.91
8-.900.063.004 63 4 6 2.9
Colors RAL
EQOairHP RAL5012
EQOoilHP RAL6032
EQOh2oHP RAL6032
